A deflagration flame arrester is a critical safety device designed to prevent flame propagation in pipelines, tanks, and process equipment when a combustible gas or vapor ignites. By stopping a flame front before it can spread, this equipment plays a vital role in protecting facilities, personnel, and assets. In this guide, we will explain how deflagration arresters work, the different types available, and why choosing the right model-such as those from Zhen Chao-inessential for safe and efficient operations.

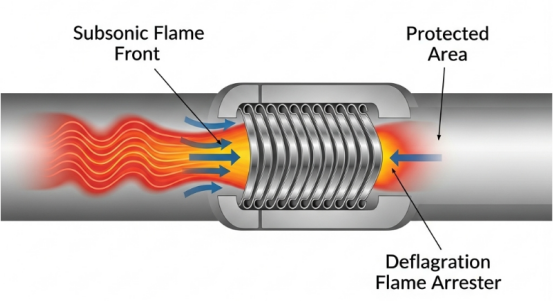

A deflagration flame arrester (also known as a deflagration arrester)is a mechanical device that prevents flames from propagating through gas or vapor piping systems during a deflagration event-where combustion spreads at a subsonic speed. Unlike detonation arresters, which are built for supersonic flame speeds, deflagration type flame arresters are optimized for slower flame fronts, making them suitable for tank vents, vapor recovery lines, and short pipeline runs.

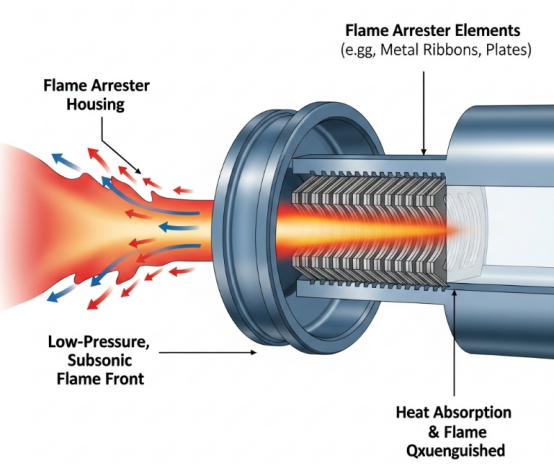

A deflagration flame arrester works by channeling the flame front through a quenching element-often made of crimped metal ribbons or perforated plates. This element absorbs heat and reduces the flame’s temperature below the ignition point of the gas mixture. The process involves:
1. Heat Absorption -The metal matrix removes heat from the flame front.
2. Flame Quenching-Small passageways break and cool the flame.
3. Flashback Prevention -Stops flames from traveling back into storage or process equipment.
1. Reliable Flame Arresting-Effective for subsonic flame events.
2. Versatile Installation-Available in end-of-line and in-line designs.
3. Low Maintenance-Simple structure with long service life.
4. Customizable-Can be tailored for specific gases, flow rates, and environmental conditions.
1. Storage Tank Vents-Prevents ignition from entering the tank.
2. Vapor Recovery Systems-Protects systems from accidental flame propagation.
3. Chemical Processing-Ensures safety in pipelines carrying flammable vapors
4. Marine & Offshore -Protects fuel systems on ships and platforms.
1. Limited to subsonic flames; unsuitable for detonation events unless used in combination with a detonation arrester.
2. Requires periodic inspection to ensure the flame element remains unobstructed.
3. May cause minor pressure drop in the system.

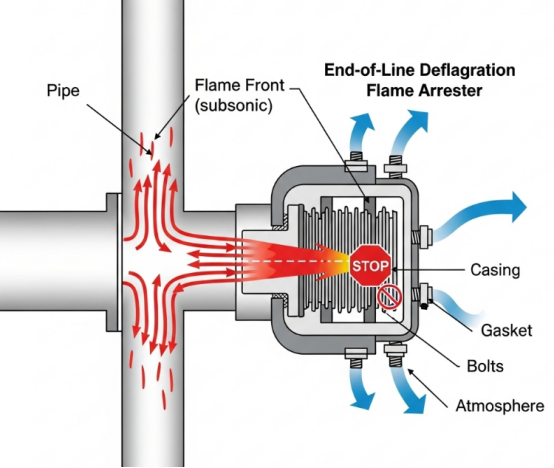

An end of line deflagration flame arrester (also called deflagration flame arrester end of line) is mounted at the termination point of a vent or exhaust outlet.
Function: Stops external flames from entering tanks or piping systems.
Applications: Tank vents, atmospheric vents, and exhaust stacks.

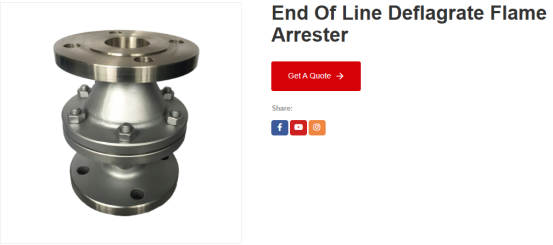

Example: Zhen Chao offers corrosion-resistant end-of-line designs suitable for harsh industrial environments.

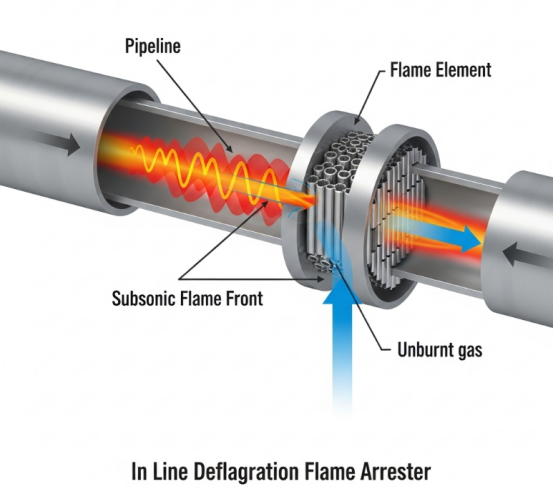

An in line deflagration flame arrester is installed between two sections of a pipeline to stop flames traveling in either direction.
Function: Provides two-way flame arresting in gas or vapor lines.
Applications: Fuel transfer lines, vapor recovery units, process pipelines.

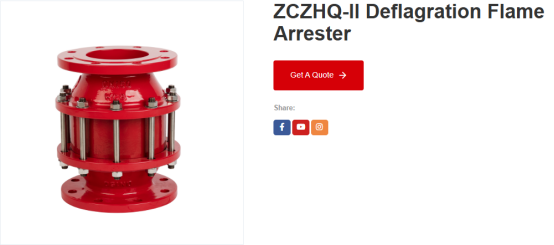

Example: Zhen Chao deflagration flame arrester in-line models are designed for high flow capacity with minimal pressure drop.
1. Stainless Steel 304/316-Corrosion-resistant, widely used.
2. Aluminum Alloy-Lightweight, moderate corrosion resistance.
3. Nickel-Copper Alloys-High resistance to seawater and chemicals.
1. Epoxy Coating-General corrosion protection.
2.PTFE (Teflon)-Chemical resistance in aggressive environments.
1. Gas or Vapor Type-Consider flame speed and ignition temperature.
2. Flow Capacity-Maintain process efficiency.
3. Installation Type-End-of-line vs. in-line.
4. Environmental Conditions-Marine, chemical, or high-temperature exposure.
5. Certifications- Look for ATEX, ISO, APl, or equivalent.
Inspection Frequency: Typically every 6–12 months.
Check for:
1. Blockages from debris or corrosion.
2. Damage to quenching element.
3. Signs of chemical attack.
Cleaning Methods: Use compressed air, mild detergents, or manufacturer-recommended solvents.
Replacement: if the quenching element is deformed, corroded, or blocked beyond cleaning.
When choosing a deflagration arrester, consider:
1. Gas or Vapor Type-Different gases have different ignition characteristics.
2. Flow Capacity-Select an arrester that maintains process efficiency.
3. Installation Type-Choose between in-line or end-of-line designs.
4. Environmental Conditions-Ensure material compatibility for corrosive or marine settings.
5. Certifications-Look for ATE, ISO, or equivalent international approvals.

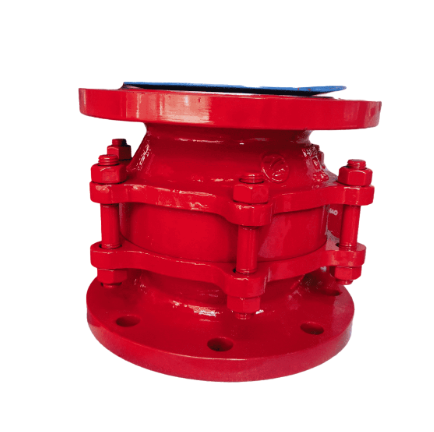

Zhen Chao is a trusted manufacturer specializing in flame arresters for the petrochemical, oil & gas, and chemical industries. Their Zhen Chao deflagration flame arrester range offers.
1. Precision Engineering-High-quality flame quenching elements.
2. Durability-Stainless steel and corrosion-resistant materials.
3. Compliance-Certified to meet international safety standards
4. Flexibility-Available in both end of line and in line configurations.
5. Customization-Tailored designs for unique operational needs
A deflagration flame arrester is a vital safeguard against fire hazards in industries handling flammable gases and vapors. By stopping subsonic flames before they can cause damage, these devices protect equipment, facilities, and human lives. Whether you require an end of line deflagration flame arrester for a storage tank vent or an inline deflagration flame arrester for a process pipeline, choosing a proven manufacturer is key.Zhen Chao deflagration flame arresters combine engineering precision, durability, and global safety compliance, making them the reliable choice for industrial flame protection. Contact Zhen Chao today to discuss your specific requirements and safeguard your operations with industry-leading flame arrester solutions.
