What’s the Difference Between Deflagration and Detonation Flame Arresters?

Introduction

In industries with flammable gases or vapors , choosing the right flame arrester can mean the difference between safety and catastrophe. Two common types—detonation flame arresters and deflagration flame arresters—serve different roles depending on flame speed, pressure, and application etc. Understanding the differences between deflagration and detonation flame arresters is critical to ensuring optimal protection. Meanwhile, ZHENCHAO offers both detonation and deflagration flame arresters, providing dependable and certified protection for various industrial safety needs.

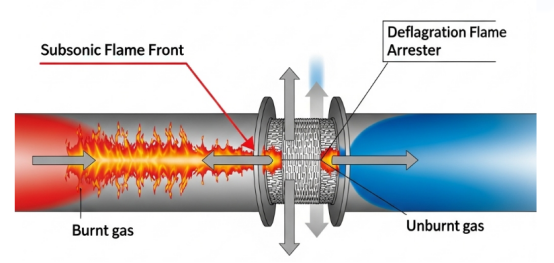

What Is a Deflagration Flame Arrester?

A deflagration flame arrester is a safety device designed to stop flames traveling at subsonic speeds (deflagrations) from propagating through piping systems or into storage tanks that contain flammable gases or vapors. It works by forcing the flame front through specially engineered narrow passages, typically made of metal elements, which absorb heat and lower the flame temperature below the ignition point. This prevents the flame from continuing beyond the arrester while still allowing normal gas or vapor flow. Deflagration flame arresters are widely used in industries such as oil & gas, petrochemical, chemical processing, and storage terminals to protect equipment and facilities from fire and explosion hazards.

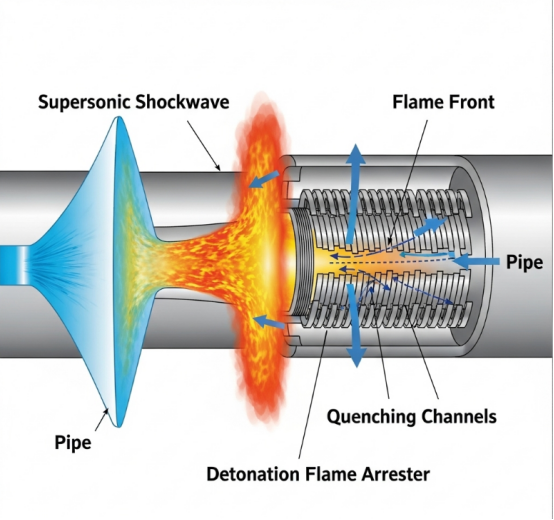

What Is a Detonation Flame Arrester?

A detonation flame arrester is a safety device engineered to stop flames and shock waves from detonations—explosions that travel at supersonic speeds—within pipelines or storage systems containing flammable gases or vapors. Unlike deflagration flame arresters, detonation models are built to withstand higher pressure and thermal loads. They use specially designed flame-quenching elements to absorb energy, cool the flame front, and prevent it from propagating beyond the arrester, while still allowing normal gas or vapor flow. These devices are critical in industries such as petrochemical, oil & gas, and chemical processing to ensure explosion protection and operational safety.

5 Differences Between Deflagration Flame Arrester and Detonation Flame Arrester

1. Flame Speed

• Deflagration Flame Arrester refers to subsonic flame propagation—typically under the speed of sound. The flame front advances slowly, driven by heat transfer and low-pressure expansion.
• Detonation Flame Arrester, on the other hand, involves supersonic flame propagation. It produces shock waves with extremely high pressures, capable of causing significant damage.

2. Pressure Resistance

• Deflagration flame arresters are designed to handle lower pressures. They’re effective when the flame speed and pressure remain moderate.
• Detonation flame arresters must endure extreme pressure spikes and shock waves, requiring stronger construction and more robust internal elements.

3. Installation Type

• Deflagration flame arresters are commonly used at the end of pipelines or tank vents (end-of-line).
• Detonation flame arresters are typically inline devices installed in the middle of piping systems, where detonation risks are higher.

4. Cost and Complexity

• Deflagration flame arresters are generally less expensive and simpler in design.
• Detonation flame arresters are more costly due to their complex structure and the dual protection they offer (they can also stop deflagrations).

5. Application Suitability

• Use a deflagration flame arrester when:

1. Your system is low pressure and short in length
2. Only slow-moving flame risks are present
3. You’re protecting a vent or end-of-line equipment

• Use a detonation flame arrester when:

1. Your system has long pipelines
2. You handle highly reactive gases or experience back-pressure

3. You need to protect against both detonation and deflagration.

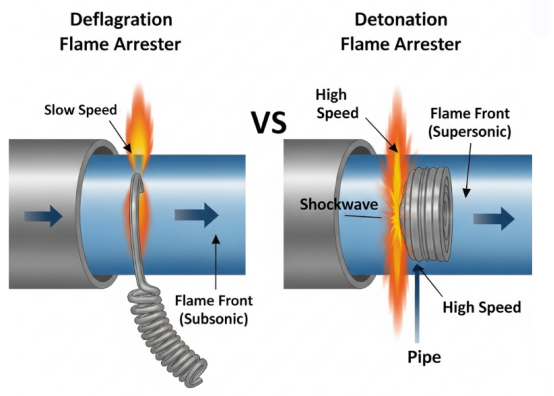

Deflagration Flame Arrester VS Detonation Flame Arrester

Choosing between a deflagration flame arrester and a detonation flame arrester

Conclusion

Understanding the key differences in the detonation vs. deflagration flame arrester comparison is critical for maintaining system safety and regulatory compliance. If your system features long pipelines, reactive gases, or the potential for high-speed combustion, a detonation flame arrester is essential. For low-pressure or end-of-line applications, a deflagration flame arrester may be sufficient. When it comes to explosion protection, don’t take chances. Consult a trusted and certified flame arrester manufacturer—like ZHENCHAO —to ensure you’re selecting the right solution for your specific needs.
