When dealing with flammable gases or volatile liquids in storage tanks and process systems, safety is a top priority. Two common devices used to ensure safe operation are breather valves and flame arrestors. While they may appear similar or even be used together, they serve very different purposes. Understanding the difference between a breather valve and a flame arrestor is crucial for designing safe, compliant, and efficient systems in industries like petrochemical, oil and gas, and chemical processing.

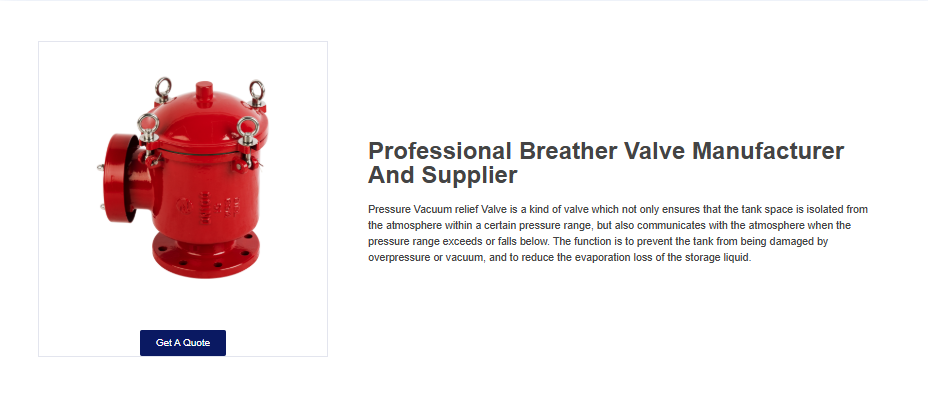

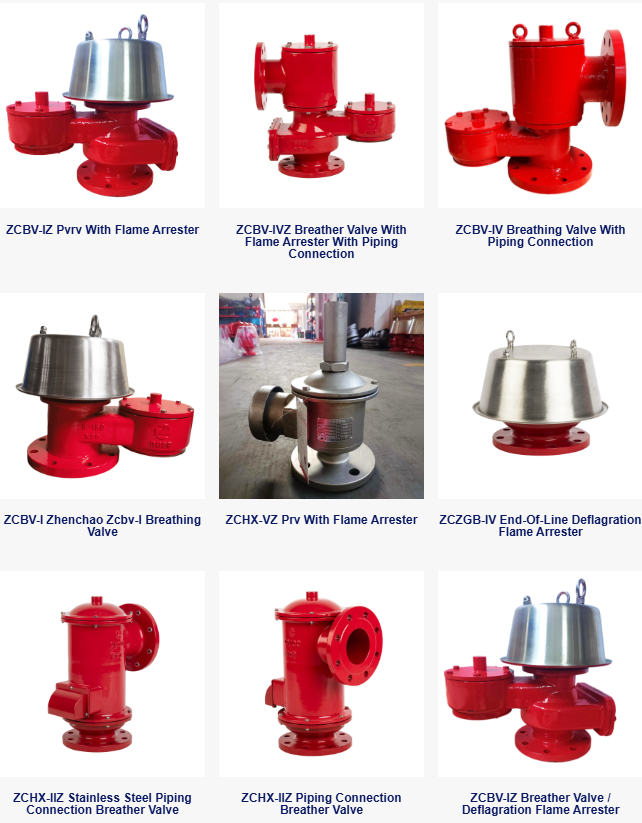

A breather valve, also known as a pressure/vacuum relief valve (PVRV), is a safety device installed on storage tanks and vessels. This valve allows tanks to “breathe” by controlling the flow of air or gas in and out. It prevents dangerous pressure build-up or vacuum conditions that could damage the tank or cause leaks. Many industries rely on breather valves to maintain safe and stable storage environments for liquids and gases.

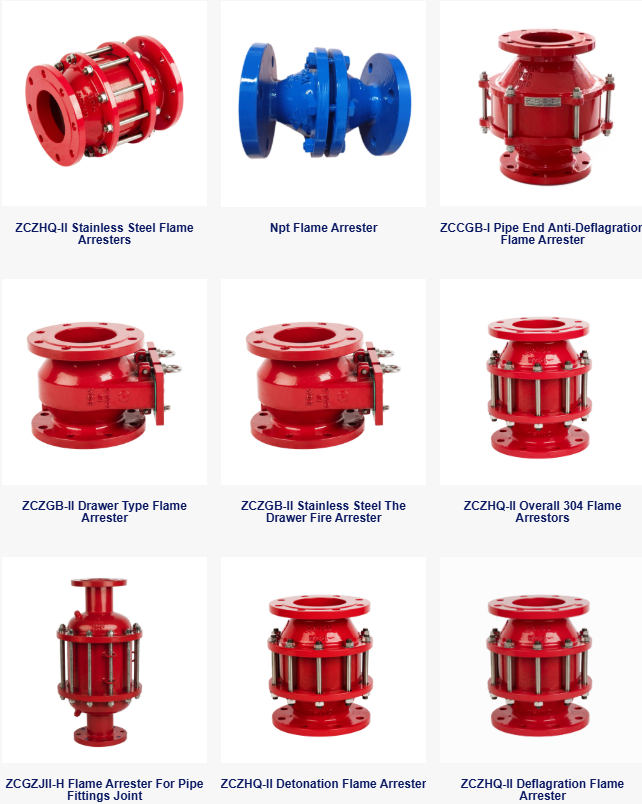

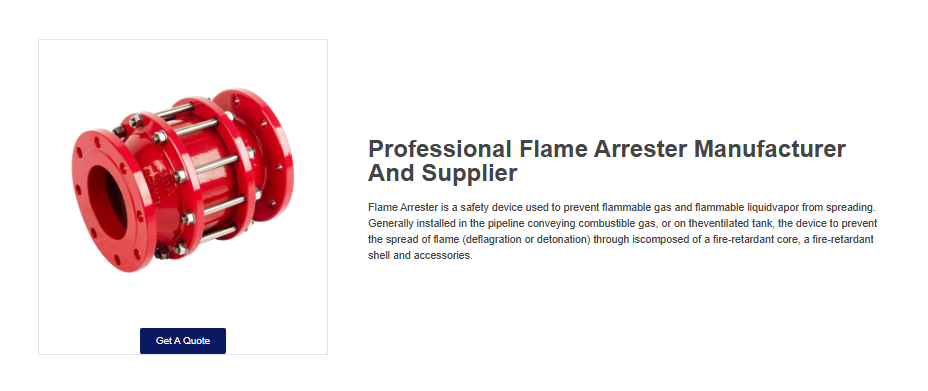

A flame arrestor, sometimes called a flame arrester or detonation arrester, is a safety device that stops flames from spreading through pipes, tanks, or equipment that handle flammable gases or vapors. According to international engineering standards like lSO/lEC 80079-49:2024 and APl 2000, a flame arrestor prevents flames from moving through a system by quenching the flame front. The device uses a special element made of metal ribbons, perforated plates, or packed tubes.This element cools the flame below its ignition temperature, stopping it from traveling further. Flame arrestors play a vital role in explosion protection for industries that store or process flammable materials.
While both breather valves and flame arrestors contribute to safety in flammable storage and processing systems, they perform very different roles.
The primary function of a breather valve is to regulate the internal pressure of a storage tank or vessel by allowing air or vapor to enter or exit as needed. It protects the tank from damage caused by overpressure (during filling or temperature rise) and vacuum conditions (during emptying or cooling).
The primary function of a flame arrestor is to prevent the propagation of flames into tanks, pipelines, or process systems containing flammable gases or vapors. It acts as a fire barrier, allowing gases to pass through while extinguishing flame fronts that may try to enter the system.
Breather valves are primarily installed on atmospheric or low-pressure storage tanks and vessels to control internal pressure.
Flame arrestors are strategically installed wherever there’s a risk of flame propagation through flammable gases or vapors. Their location depends on the process conditions and safety requirements.
Breather valves protect storage tanks from both overpressure and vacuum conditions. When pressure builds up due to filling or temperature rise, the valve releases excess vapor to prevent tank rupture. Conversely, during emptying or cooling, it allows air to enter, avoiding tank collapse. This dual-action protection ensures operational safety, minimizes product loss, and helps meet environmental regulations.
Flame arrestors protect equipment and personnel by preventing flame propagation in systems handling flammable gases or vapors. They stop external ignition sources—like sparks or open flames—from entering tanks or pipelines by quenching the flame front. This critical safety function helps prevent fires, explosions, and catastrophic damage in hazardous environments such as petrochemical, chemical, and fuel storage facilities.
Breather valves operate by automatically adjusting the internal pressure of a tank to match the surrounding air pressure.When the pressure inside the tank rises above a preset level, the valve opens to release excess gas. lf the pressure drops below atmospheric pressure, the valve admits air to prevent the tank from collapsing.
Flame arrestors have a long history in industrial safety. Early designs date back to the 19th century, when engineers first used them in mining and chemical plants to prevent explosions. Over time, their design improved to meet strict safety standards and to handle a wider range of gases and vapors.
Breather valve design components play a crucial role in maintaining safe tank pressure levels. A typical breather valve includes a spring or weight-loaded mechanism for pressure and vacuum relief, tightly sealed valve seats and discs, and a corrosion-resistant body to withstand harsh industrial environments.
Flame arrestor design components are engineered to stop flame propagation in flammable gas or vapor systems. The core element is the flame-quenching matrix, typically made of corrugated metal ribbons, crimped mesh, or perforated plates, which absorb heat and extinguish the flame.
Breather valves see widespread use in industries such as chemicals, oil and gas,pharmaceuticals, food processing, and energy. They regulate pressure in storage tanks, silos, pipelines, and containers.
Flame arrestors protect people, equipment, and facilities in industries that handle flammable gases or liquids. Companies like Zhejiang ZhenChao Petrochemical install flame arrestors at key points in their storage tanks,pipelines, and vapor control systems. These devices stop flames from entering or leaving tanks,especially at vent points where gases escape.
| Features | breather valve | Flame Arrester |
| Primary function | Regulates tank pressure and vacuum. | Prevents flame propagation and spread. |
| Operational mechanism | Vents air to balance internal pressure. | Cools flames to stop ignition. |
| Safety role | Prevents tank collapse or rupture. | Blocks flames to prevent explosions. |
| Typical applications | Used on storage tanks and vessels. | Installed on vents and pipelines. |
| Maintenance frequency | Inspected annually for corrosion and settings. | Cleaned and inspected every six months. |
| Design components | Spring or magnet-actuated valve mechanism. | Metal channels or perforated elements. |
| Pressure handling | Controls pressure within safe limits. | Not designed for pressure regulation. |
| Environmental concerns | Prevents contamination and product loss. | Susceptible to clogging and corrosion. |
| Industry standards | API 2000, ISO28300, TRGS-509 compliant. | API, NFPA, CEN/TR 16793 compliant. |
A breather valve controls the flow of air in and out of a storage tank to regulate internal pressure, while a flame arrestor stops flames from entering or exiting a tank. These devices play unique roles in protecting tanks and industrial vessels. In high-risk industries, both devices help prevent overpressure, equipment failure, and explosions. Emergency venting systems, which include breather valves and flame arrestors, release excess pressure and maintain safe operations. Many companies now use smart venting systems for real-time monitoring, further improving safety.

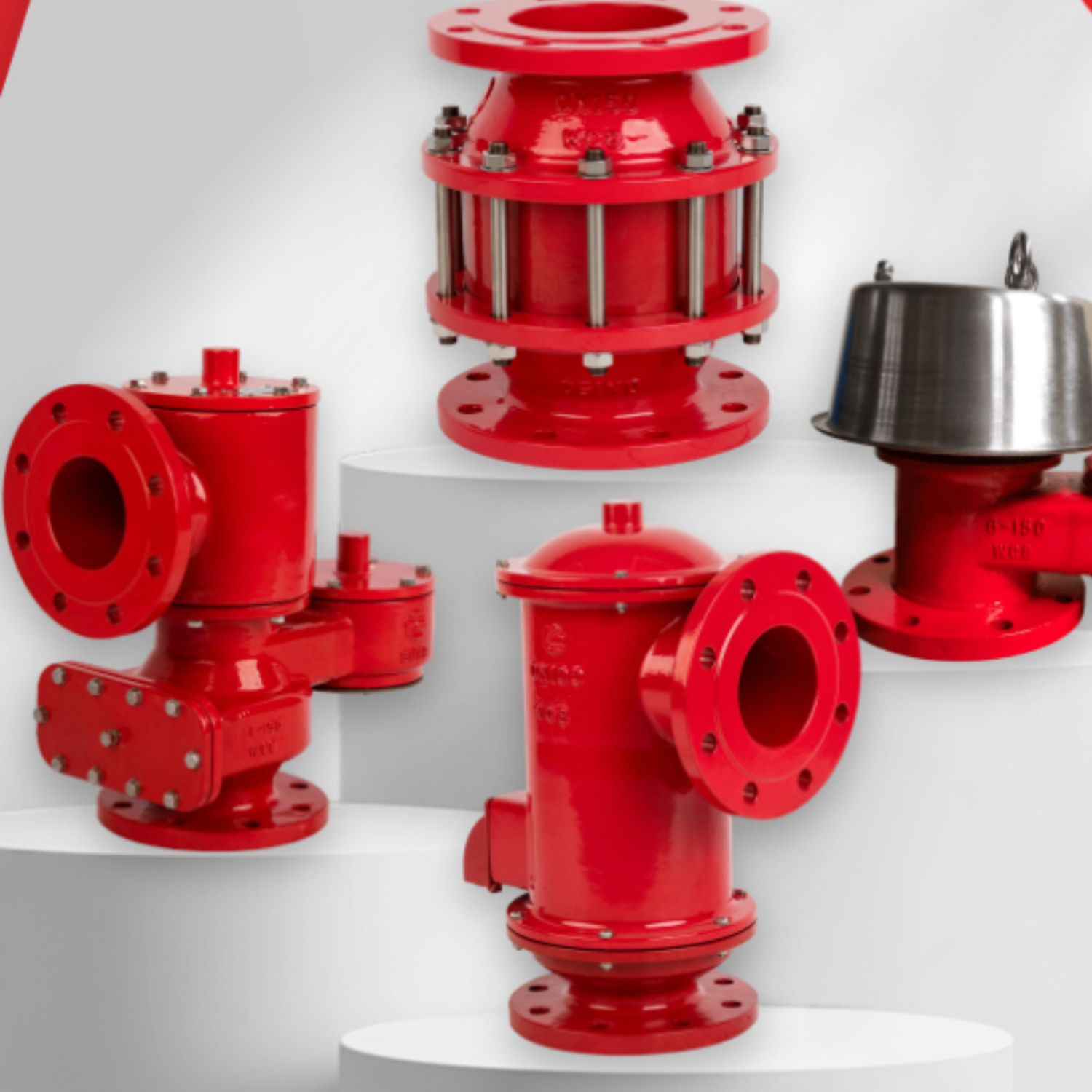

In industrial environments where flammable materials are stored or transported, both breather valves and flame arrestors are essential for safety and compliance. ZhenChao’s breather valves ensure precise pressure control by automatically venting air or vapor to protect tanks from rupture or collapse. Meanwhile, ZhenChao flame arrestors provide reliable protection against flame propagation, effectively preventing external ignition from causing fires or explosions. Together, these high-performance safety devices from ZhenChao help industries maintain operational safety, environmental compliance, and peace of mind.
