In industries where flammable gases or vapors are transported through pipelines, the risk of an explosion is ever-present. A detonation flame arrester is a critical safety device designed to stop high-speed flame fronts, often traveling faster than the speed of sound before they can cause catastrophic damage. Whether for chemical plants, oil & gas pipelines, or fuel storage facilities, understanding the purpose and proper use of a detonation flame arrester is essential for ensuring operational safety.
A detonation flame arrester is a safety device engineered to prevent the spread of a detonation-a supersonic combustion wave-through pipelines or process systems. Unlike deflagration arresters, which deal with slower, subsonic flames, flame arrester detonation type models are built to handle extremely high pressures and shock waves.

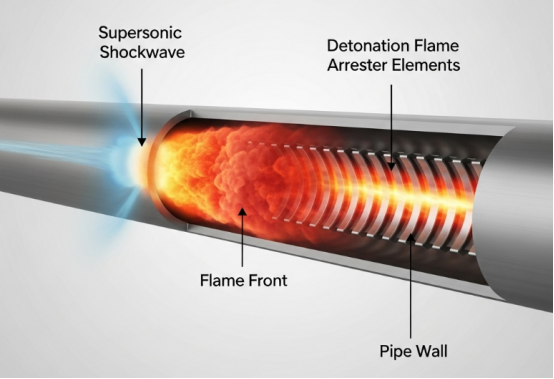

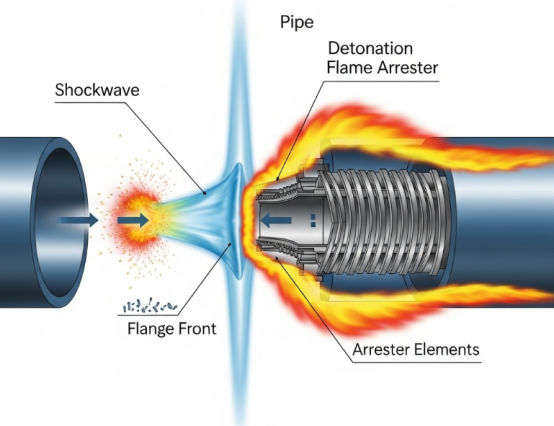

The flame arrester works by forcing the flame front through a specially designed flame element-often a crimped ribbon or metal matrix-that:
1. Dissipates the shock wave generated by the detonation.
2. Absorbs heat from the combustion gases, reducing their temperature below the ignition point.
3. Stops flame propagation in both directions without interrupting normal flow.
1. High Pressure Resistance-Designed to withstand the extreme pressures of stable and unstable detonations.
2. Bidirectional Protection-Stops flame fronts traveling in either direction.
3. Versatility- Suitable for gases, vapors, and certain chemical mixtures.
4. Compliance-Meets international safety standards such as ATEX and lSO.
Application scenarios
1. Long-distance fuel and gas pipelines.
2. Chemical processing plants handling volatile vapors.
3. Offshore oil and gas platforms.
4. Storage tank vapor recovery systems.
5. Hazardous chemical transportation systems.
1. Higher Initial Cost-Compared to deflagration arresters, due to more robust construction.
2. Periodic Maintenance-Requires regular inspection to ensure the flame element is free from debris or corrosion.
3. Pressure Drop-Slightly higher than standard flame arresters due to dense flame element design.

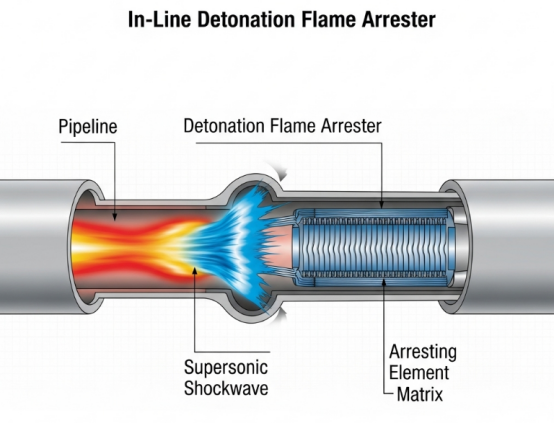

An in line detonation flame arrester is installed directly between two pipeline sections to stop detonations in either direction.
1. Advantages: High bidirectional protection, suitable for continuous flow systems.
2. Typical Use: Gas distribution networks, industrial vapor recovery.
3. Example: Zhen Chao detonation flame arrester in line models offer low pressure drop and high durability.

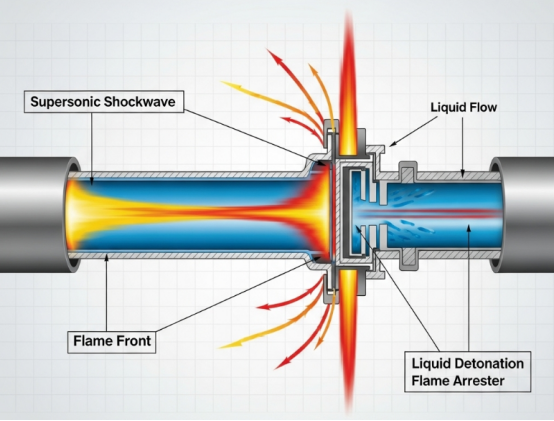

A liquid detonation flame arrester uses a liquid medium, such as water or a chemical solution, to quench the flame.
1. Advantages: High thermal absorption efficiency; can also filter contaminants.
2. Typical Use: Chemical reactors, specialized processing plants
An unstable detonation flame arrester handles flame fronts with unpredictable speeds and pressure fluctuations before stabilizing
1. Advantages: Enhanced protection in systems with turbulent or variable flow.
2. Typical Use: Long pipelines with multiple bends or variable operating conditions
1. Gas or Vapor Composition- Different fuels require specific arrester materials.
2. Pipeline Length and Layout-Longer and more complex layouts increase detonation risk.
3. Operating Pressure and Flow Rate: Ensure compatibility with system requirements.
4. Environmental Conditions-Select corrosion-resistant materials for harsh environments.
5. Certification and Standards-Look for ATEX, ISO, or equivalent certifications.
6. Brand and Support-Trusted manufacturers like Zhen Chao provide proven reliability.
Zhen Chao offers advanced solutions for industrial explosion protection:
1. Heavy-Duty Engineering-Capable of withstanding both stable and unstable detonations.
2. High-Performance Flame Elements-Optimized for rapid shock wave dissipation and heat absorption.
3. Wide Application Coverage-From chemical plants to oil refineries and offshore platforms.
4. Proven Safety Compliance-Meets global safety and performance standards.
5. Customization Options-Tailored designs for unique operational needs.
Whether you require an in line detonation flame arrester, a liquid detonation flame arrester, or a specialized unstable detonation flame arrester, Zhen Chao delivers durability, performance, and peace of mind.
A detonation flame arrester is a vital safeguard against catastrophic explosions in high-risk industrial environments. By stopping supersonic combustion waves, these devices protect lives, equipment, and production continuity.Zhen Chao detonation flame arresters combine cutting-edge design, high reliability, and compliance with global safety standards. Equip your operations with the right protection today–contact Zhen Chao now to find the perfect flame arrester solution for your system.
