How Do Flame Arresters Protect Against Fire Hazards
31/07/2025
Flame arrestersplay a vital role in stopping fire hazards by blocking flames from traveling through pipes or vents. Many industries that handle flammable materials rely on these devices to prevent explosions and protect workers.
Flame arresters can prevent up to 70% of industrial accidents in petrochemical and related industries.
Regulatory standards like OSHA PSM and the ATEX Directive have increased their use.
The oil and gas sector uses them most because of high risks.
Inline flame arresters are especially effective in pipelines and process
Proper selection and regular maintenance keep these systems reliable. Companies often turn to Zhejiang ZhenChao Petrochemical for trusted flame arrester solutions.

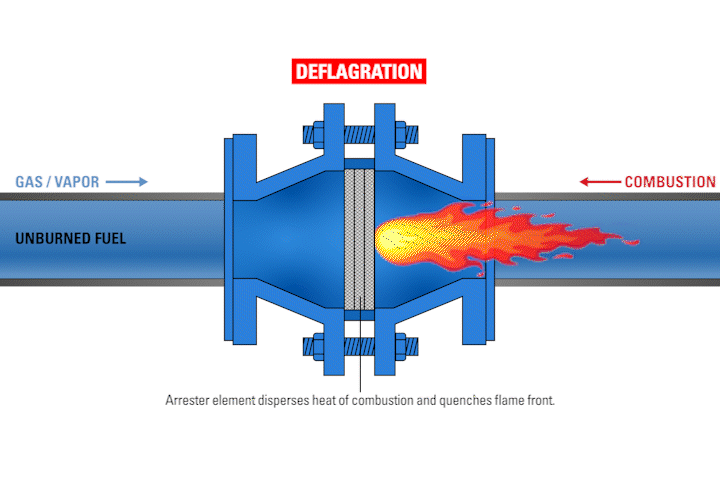

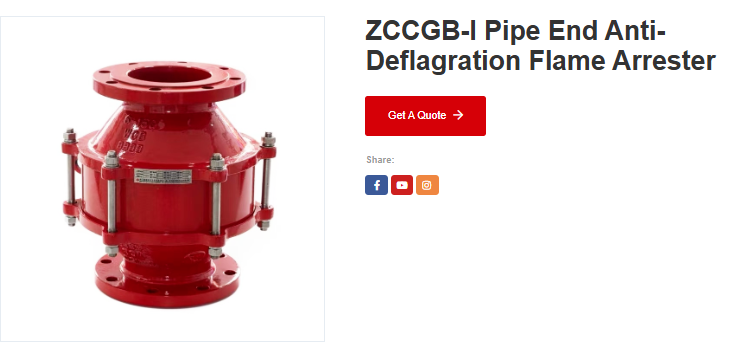

Deflagration Flame Arresters of Protection
Protection Principle

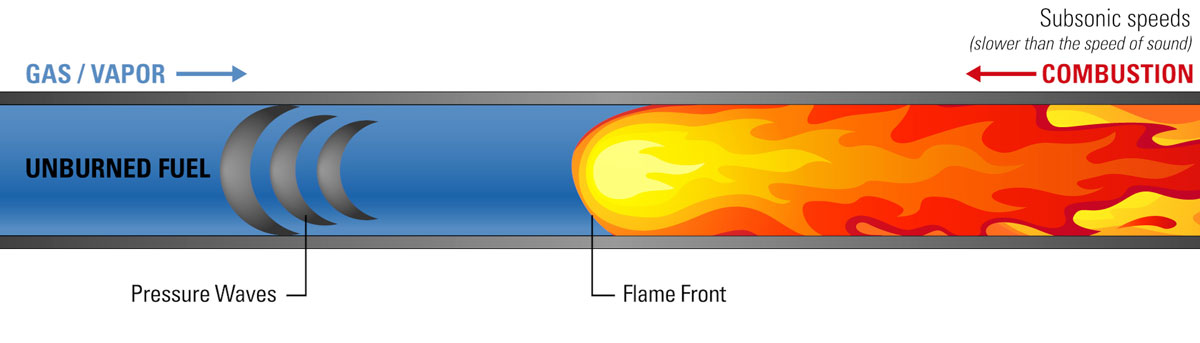

Deflagration flame arresters protect equipment by stopping low-speed flame fronts (deflagrations) before they can enter flammable vapor systems. Their protection principle relies on heat absorption and flame quenching. As the flame passes through a precision-engineered metal matrix—such as crimped ribbon or wire mesh—it is rapidly cooled below ignition temperature, effectively extinguishing it. ZhenChao’s deflagration flame arresters are designed for optimal performance in subsonic flame conditions, making them ideal for vent lines, process piping, and storage tanks. With robust materials and strict adherence to global safety standards, ZhenChao ensures reliable protection against internal explosions in hazardous environments.
How They Work

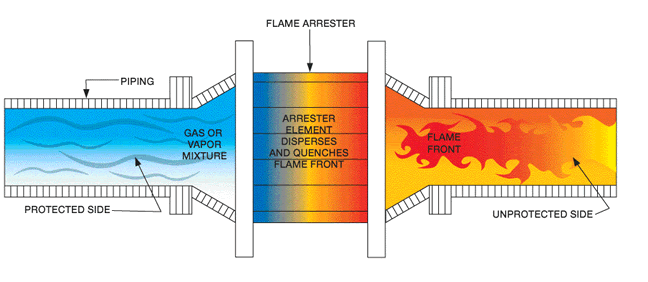

The arrester contains a flame element, typically made of corrugated metal or crimped ribbon mesh, which absorbs heat from the flame
As the flame front enters the arrester, the element rapidly quenches the flame by cooling the hot gases below the ignition temperature.
This prevents the flame from continuing downstream, stopping itat the device.
Protection Benefits
Prevents fires or explosions from spreading back into tanks, vessels, orupstream equipment.
Essential for safety in low-pressure systems, tank vents, and shortpipe runs with limited flame speed.
Meets industry standards like APl, NFPA, and ATEX for flammable vapor handling.

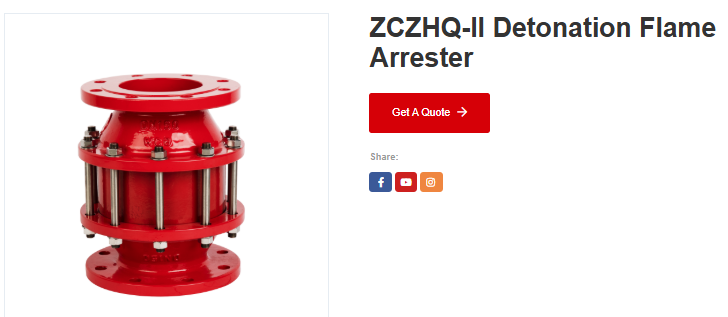

Detonation Flame Arresters of Protection
Protection Principle
Detonation flame arrestersare designed to protect equipment and personnel by stopping supersonic flame fronts and high-pressure shock waves caused by detonations in flammable gas or vapor systems. Unlike deflagrations, detonations travel faster and exert intense pressure, making them more destructive and harder to stop.
How They Work
These arresters feature a robust flame quenching element housed in a heavy-duty casing to withstand extreme pressure surges.
When a detonation enters the arrester, the flame front and shockwave are disrupted and absorbed by the flame cell element.
The flame element cools the gases below their autoignition temperature and quenches both the flame and pressure wave,stopping flame propagation instantly.
Protection Benefits
Critical in systems with long pipe runs, high operating pressures, or turbulent gas flow.
Ensures safety even during worst-case ignition scenarios, such as stable detonations or overdriven detonations.
Commonly used in petrochemical plants, refineries, and gaspipelines, where the risk of detonation is high.
Designed in compliance with APl 2000, ls0 16852,and ATEXDirective for maximum explosion protection.
Key Factors in Selecting the Right Flame Arrester
Choosing the right flame arrester depends on several important factors.
Select a flame arrester type that matches the pressure and flame velocity in the Detonation arresters work best for high-pressure applications with fast-moving flames.
Check the flow rate and pressure drop. The device must handle the maximum expected flow without causing system problems.
Make sure the materials are compatible with the process fluid to prevent corrosion and maintain safety.
Consider the flammability of the gas or vapor. Each flame arrester is designed for specific chemicals or gases.
Follow certification standards such as EN lS0 16852:2016 for compliance and
Plan for easy maintenance and installation access.
Review the location of ignition sources and pipeline design, as turbulence and flow restrictions can affect performance.
Conclusion
That’s why partnering with trusted experts like Zhejiang ZhenChao Petrochemical makes all the difference. With high-performance materials, precise engineering, and expert technical support ZhenChao delivers flame arrester solutions that meet global safety standards and provide long-lasting protection. When safety is non-negotiable, you need a partner you can rely on.
