When it comes to industrial storage tanks and process systems, safety and efficiency depend on using the right valve. Two commonly compared devices are the breather valve and the pressure relief valve. While both help manage pressure fluctuations, they serve different roles and are built for distinct applications. Understanding their differences helps engineers, plant operators, and buyers choose the correct solution for their needs. In this guide, we will explore what each valve does, compare them side by side, and explain where products like Zhen Chao breather valves fit into the picture.

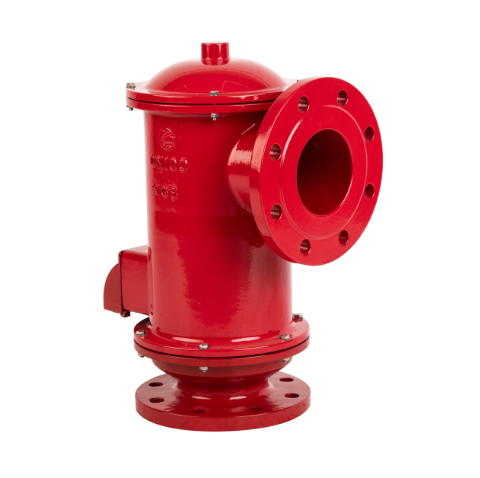

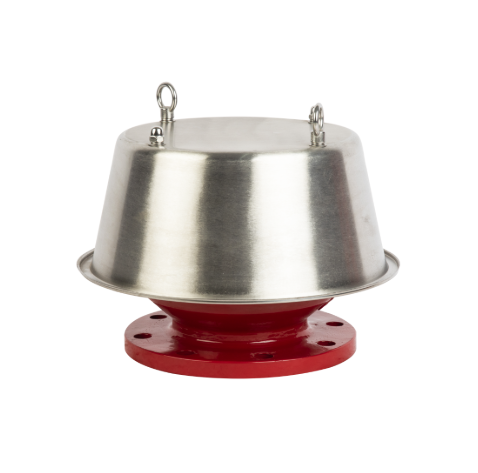

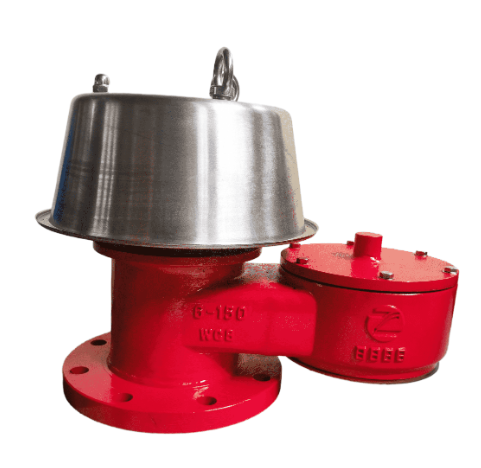

A breather valve, also known as a breather vent valve or pressure vacuum relief valve, is a specialized device designed to protect low-pressure storage tanks from damage caused by internal pressure fluctuations. It works by allowing gases to escape when the tank pressure rises above a safe level, and admitting air when a vacuum forms inside. This dual function keeps the tank structure intact while minimizing product loss. Unlike standard venting devices, breather valve types are engineered with precision settings to maintain a narrow pressure range, helping reduce evaporation losses and protect stored liquids such as fuels, chemicals, and solvents. Leading manufacturers like Zhen Chao provide durable, high-performance breather valves tailored for safety, environmental compliance, and long-term reliability.

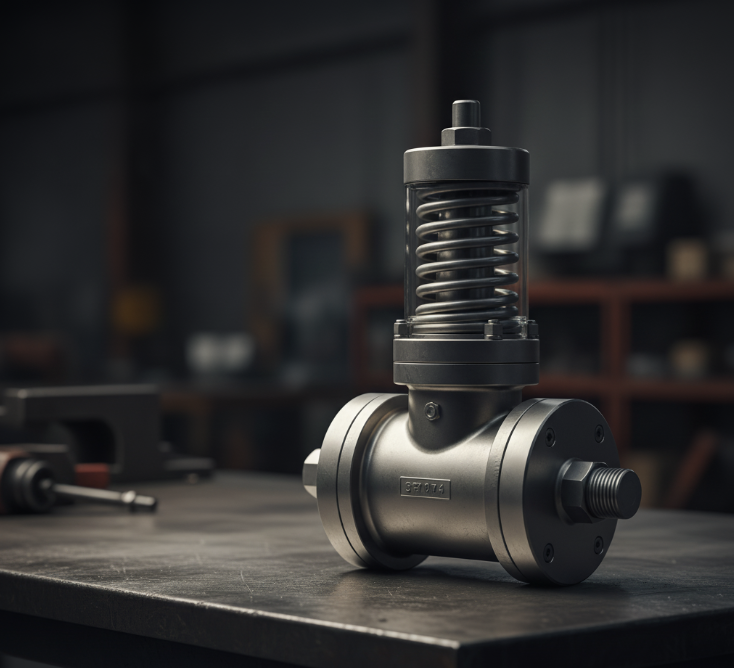

A pressure relief valve (PRV), sometimes referred to as a safety valve, is a critical safety device used in pressurized systems such as boilers, gas pipelines, air compressors, and chemical processing equipment. Its primary role is to automatically release excess pressure when the system exceeds a pre-set limit, preventing equipment damage or catastrophic failure. Unlike breather valves, which manage both pressure and vacuum in storage tanks, a pressure relief valve is generally one-directional, designed to vent overpressure only. This makes it essential in applications where sudden pressure spikes could endanger operators, equipment, or the surrounding environment. In many industries, engineers compare breather valve vs pressure relief valve to ensure the correct valve is selected for each unique operating condition.
Breather Valve: Maintains pressure balance in storage tanks by allowing both inflow and outflow of gases (pressure and vacuum relief).
Pressure Relief Valve: Protects systems from dangerous overpressure by venting excess fluid or gas.
Breather Valve: Used mainly in low-pressure storage tanks, fuel tanks, and chemical storage facilities.
Pressure Relief Valve: Applied in pipelines, boilers, compressors, and high-pressure process equipment.
Breather Valve: Typically handles very low-pressure ranges (inches of water column).
Pressure Relief Valve: Operates in a much higher pressure spectrum, from bar/psi levels up to hundreds of bars.
Breather Valve: Compact, lightweight, often installed on tank roofs. Designed with weight or spring-loaded mechanisms.
Pressure Relief Valve: Heavier, more robust, designed to withstand extreme operating conditions.
Breather Valve: Allows bidirectional flow (inhalation and exhalation of vapors).
Pressure Relief Valve: Generally one-directional, only venting out excess pressure.
Breather Valve: Prevents tank collapse, reduces vapor emissions, minimizes product loss, and protects the environment.
Pressure Relief Valve: Ensures personal and equipment safety by preventing catastrophic overpressure.
| Comparison Item | Breather Valve | Pressure Relief Valve |
|---|---|---|
| Main Function | Control the positive and negative pressure (vacuum) in the tank to prevent deformation or damage to the tank | Only release pressure when the system pressure exceeds the standard to protect the safety of equipment and personnel |
| Application Scenario | Commonly used in atmospheric storage tanks, low-pressure tanks (petroleum, chemical, solvent storage tanks) | Used for high-pressure pipelines, boilers, pressure vessels, etc. |
| Working pressure range | Low pressure range (typically a few millibars to a few psi) | Medium to high pressure range (several psi to thousands of psi) |
| Structural characteristics | With positive pressure valve disc and negative pressure valve disc, can work in both directions; some with flame arrester | Most of them are spring-loaded or pilot operated structures, with only one-way pressure relief |
| Flow characteristics | Bidirectional: can deflate (positive pressure) or inhale (inhale air when in vacuum) | One-way: only discharge medium outward |
| Main Purpose | Protect the structural integrity of the tank and reduce steam emissions to meet environmental protection requirements | Prevent system overpressure explosion and ensure the safety of equipment and personnel |
| Cost and maintenance | Low cost and relatively simple maintenance | High cost, requires regular testing and calibration |
Both breather valves and pressure relief valves play essential roles in industrial safety. A breather valve—especially advanced designs like the Zhen Chao breather valve—is ideal for protecting storage tanks, preventing collapse under vacuum, controlling vapor loss, and safeguarding the environment. On the other hand, a pressure relief valve is indispensable in high-pressure systems where preventing catastrophic overpressure is the priority. When selecting between a breather valve and a pressure relief valve, always consider the specific operating conditions of your system. If you’re looking for reliable tank protection, Zhen Chao breather valves are engineered to deliver proven performance.
