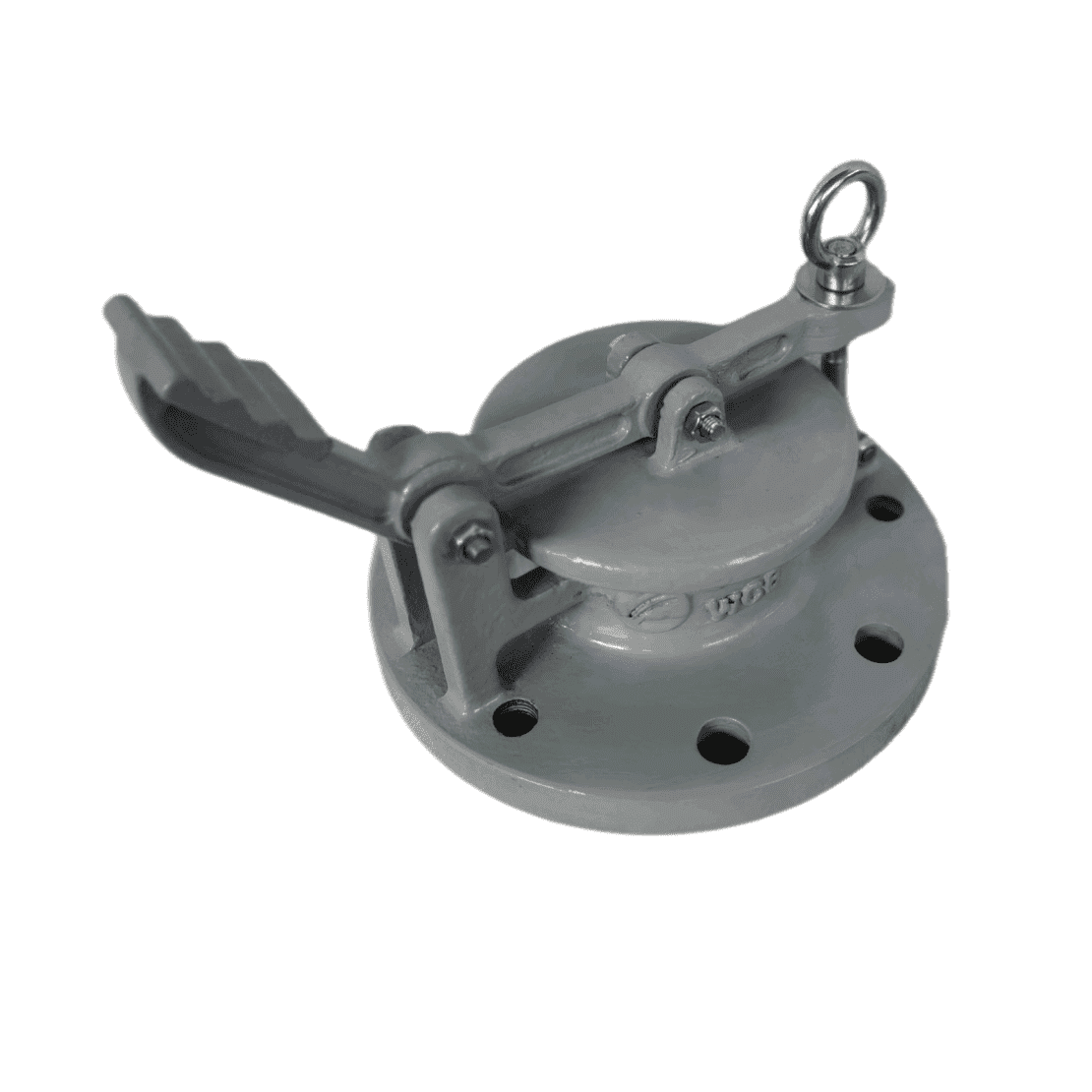

The ZCGLY-I Oil Measuring Hole is a hands-free gauge hatch designed for atmospheric storage tanks. Its foot-operated pedal allows for easy opening of the gauge hatch cover, keeping the operator’s hands free for sampling or dipping. Built with a spark-proof, airtight design, it ensures maximum safety and VOC emission control in hazardous environments.
Producdt Description:
The ZCGLY-I Oil Measuring Hole is a premium safety access component meticulously engineered for atmospheric and low-pressure storage tank systems. As a high-performance gauge hatch, it is designed to streamline manual tank operations while maintaining strict safety protocols in volatile industrial environments.
The standout feature of this gauge hatch is its integrated, heavy-duty foot-operated pedal. This ergonomic design allows operators to open the gauge hatch cover effortlessly without using their hands, providing the necessary freedom to manage sampling bottles, dipping tapes, or temperature sensors with precision and safety.
Operating pressure:
Note:
Under normal circumstances, (fire) breathing valve operating pressure to B shall prevail;
Applicable materials: gasoline, kerosene, diesel, aromatics, sulfur, air and other petrochemical materials;
Environment temperature: -40 °C -+60 °C;
Shell material: HT, AL, A3, 18-8, 304, 304L, 316, 316L.
Flange standards: HG20592-97 PN1.0 (also can be produced according to user specified criteria)
“Request Technical Drawings and Material Specifications.”
Q1: What is the primary use of the ZCGLY-I Oil Measuring Hole?
A1: It provides a secure, sealed opening on storage tanks for manual dipping, level measurement, and fluid sampling.
Q2: How does the foot-pedal benefit the operator?
A2: The pedal allows for hands-free opening of the gauge hatch cover, which is safer and more efficient when the operator is holding sampling equipment or measurement tapes.
Q3: Is this product safe for use in explosive zones?
A3: Yes, the ZCGLY-I is designed with spark-proof features to prevent ignition during use in hazardous oil and gas environments.
Q4: Can the ZCGLY-I handle corrosive chemical tanks?
A4: Yes. While Carbon Steel is standard, we offer Stainless Steel (SS304/SS316) models specifically for corrosive environments.
Q5: What sizes are available for the ZCGLY-I series?
A5: We offer standard diameters such as DN100 and DN150, and can customize flange connections to meet ANSI, DIN, or JIS standards.
