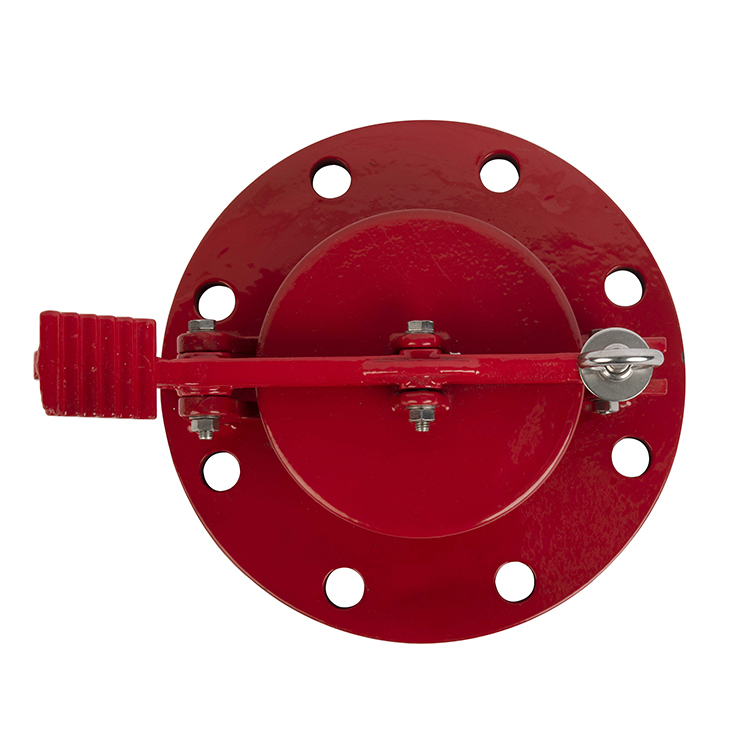

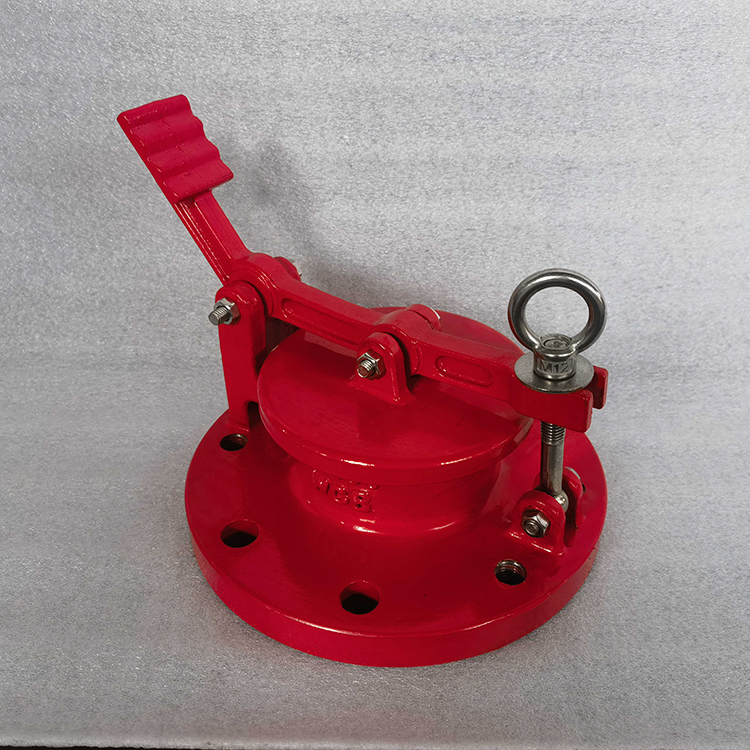

The ZCGLY-I Type Of Pedal Gauge Hatch provides hands-free access for atmospheric gauge hatch tank systems. Its heavy-duty foot pedal allows operators to open the gauge hatch cover while keeping hands free for sampling or dipping. Engineered with spark-proof technology and a precision seal, it ensures safety and VOC emission control in hazardous environments.
Producdt Description：The ZCGLY-I Type Of Pedal Gauge Hatch is a specialized safety access point designed for atmospheric and low-pressure storage tanks. This gauge hatch is engineered for maximum efficiency, featuring a heavy-duty foot pedal that allows operators to open the hatch hands-free. This design is essential for technicians performing manual dipping, sampling, or temperature measurement who need their hands available for tools. With a focus on safety, the ZCGLY-I ensures an airtight seal and incorporates spark-proof technology for hazardous environments.
Operating pressure:
Note:
Under normal circumstances, (fire) breathing valve operating pressure to B shall prevail;
Applicable materials: gasoline, kerosene, diesel, aromatics, sulfur, air and other petrochemical materials;
Environment temperature: -40 °C -+60 °C;
Shell material: HT, AL, A3, 18-8, 304, 304L, 316, 316L.
Flange standards: HG20592-97 PN1.0 (also can be produced according to user specified criteria)
“Download ZCGLY-I Technical Datasheet and Installation Guide.”
Q1: What are the main benefits of a pedal-type gauge hatch?
A1: The primary benefit is hands-free operation. Technicians can use the foot pedal to open the hatch, leaving their hands free to manage sampling bottles or dipping tapes safely.
Q2: Is the ZCGLY-I suitable for explosive environments?
A2: Yes. It is designed with spark-proof features and high-grade materials to prevent frictional ignition, making it safe for hazardous oil and chemical storage areas.
Q3: What materials is this gauge hatch available in?
A3: We offer the ZCGLY-I in high-strength Carbon Steel for standard use and Stainless Steel (SS304/SS316) for highly corrosive environments.
Q4: How does it prevent vapor loss?
A4: The hatch features a precision-engineered sealing gasket that creates an airtight barrier when closed, minimizing the escape of volatile organic compounds (VOCs).
Q5: Can the connection be customized for specific tank standards? A5: Absolutely. We can manufacture the connection flange to meet ANSI, DIN, JIS, or GB international standards to ensure a perfect fit for your tank.
