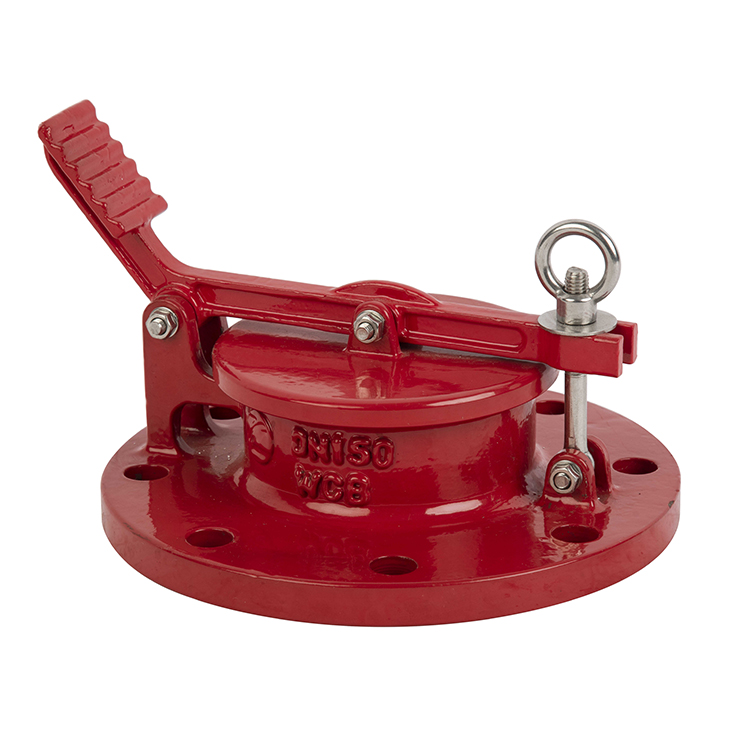

The ZCGLY-I Gauge Hole is an essential safety and measurement accessory for atmospheric storage tanks. Designed for efficiency, this gauge hatch features a convenient foot-operated pedal, allowing operators to keep their hands free for sampling, dipping, or temperature measurement. Its robust construction and airtight gauge hatch cover prevent vapor loss while the spark-proof engineering ensures maximum safety in volatile environments.
Producdt Description:
The ZCGLY-I Gauge Hole (also known as a Gauge Hatch) is a high-performance safety and measurement component for atmospheric storage tanks. Engineered for maximum operational efficiency, this gauge hatch features a robust foot-operated pedal, enabling operators to keep their hands free for critical tasks such as liquid level dipping, temperature sensing, and oil sampling. Its durable construction and precision-engineered gauge hatch cover provide an airtight seal, effectively preventing vapor loss and protecting the environment.
Operating pressure:
Note:
Under normal circumstances, (fire) breathing valve operating pressure to B shall prevail;
Applicable materials: gasoline, kerosene, diesel, aromatics, sulfur, air and other petrochemical materials;
Environment temperature: -40 °C -+60 °C;
Shell material: HT, AL, A3, 18-8, 304, 304L, 316, 316L.
Flange standards: HG20592-97 PN1.0 (also can be produced according to user specified criteria)
“Get a Fast Quote on ZCGLY-I Gauge Hatch Today!”
Q1: What is the primary function of the ZCGLY-I Gauge Hole?
A1: It provides a secure, sealed access point on top of storage tanks for manual level dipping, sampling, and temperature sensing.
Q2: How does the foot-pedal mechanism benefit operators?
A2: The foot-operated pedal allows the gauge hatch cover to be opened without using hands, making it easier and safer for technicians to manage sampling tools.
Q3: Can this gauge hole be used with corrosive chemicals?
A3: Yes. While the standard model is carbon steel, we offer Stainless Steel (SS304/SS316) versions specifically for corrosive media.
Q4: Does the ZCGLY-I provide a gas-tight seal?
A4: Absolutely. It features high-grade, oil-resistant sealing gaskets that prevent the leakage of tank vapors when the hatch is closed.
Q5: Is it safe for use in explosive gas environments?
A5: Yes, the ZCGLY-I is engineered with spark-proof features to prevent mechanical friction from causing ignition during use.
